Vysoko pevný motor Yuchai Tichý typ generátora

STANDARD

ISO 8528: Agregát striedavého prúdu poháňaný piestovým spaľovacím motorom

IEC 60034-1: Základné technické požiadavky na točivé elektrické stroje

YD/T 502: Komunikačný dieselagregát

GB/T 20136-2006: Všeobecná skúšobná metóda pre elektráreň so spaľovacím motorom

VÝHODY

The main structure of the engine body, cylinder head, crankshaft and connecting rod has been tested for a long time to ensure the high reliability of the whole machine.

Adopt the cylinder head integrated water outlet design to reduce the sealing surface and improve the reliability of the sealing.

Leading turbocharged and intercooled, four-valve and electronic control technology, the combustion organization is accurate and rapid, the emission is good, the transient response performance is good, and the loading capacity is strong.

The high-strength cylinder block, alloy crankshaft, alloy steel connecting rod and internal cooling oil passage piston make the engine more durable, and it has a lighter and more compact structure among similar products.

Adopt advanced and mature BOSCH electronic control common rail with high-efficiency supercharging technology to accurately control the fuel injection volume and sufficient air intake to ensure that the diesel engine can fully burn and emit less under different load conditions.

Good transient speed regulation and strong loading capacity.

Spĺňa požiadavky výkonnostnej úrovne G3 agregátu generátora.

The transient response of the unit is tested according to the ISO 8528-5 standard, and the single-step loading rate can reach up to 60%
All engine systems have passed prototype and factory tests

The use of excellent shock absorption devices can reduce the vibration of the unit, and the use of high-efficiency silencers and a fully enclosed noise reduction system can reduce the noise of the unit by 15 to 35dB (A), making the unit less vibration and low noise.

Adopting labyrinth air duct structure and dust-proof net design, and adding sealing strips and applying sealant to balance the different needs of ventilation and waterproofing and dust proofing. At the same time, it has been verified by repeated rain test and dustproof test. The standard protection level is IP23. The highest can reach IP43.

The use of high-quality steel and surface spray treatment, corrosion resistance, scratch resistance and rust resistance, strong and durable.

VÝKON

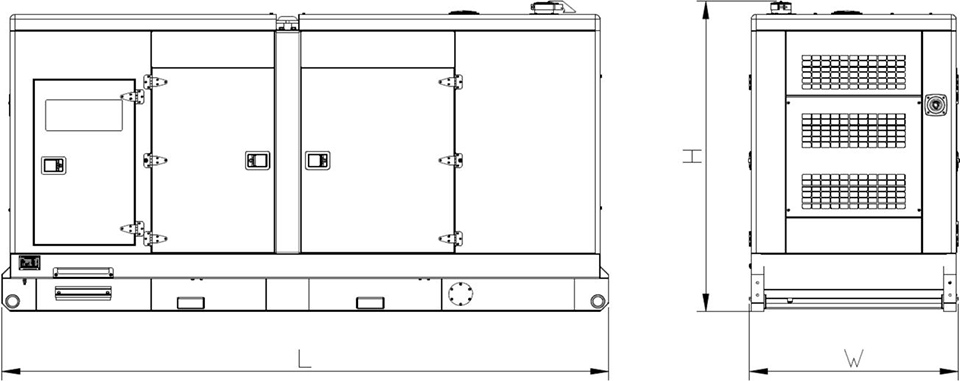

DRAWING

OPERAČNÉ PROSTREDIE

Hlavný výkon (PRP) je maximálny výkon, ktorý môže jednotka nepretržite prevádzkovať s premenlivou záťažou v štandardných podmienkach prostredia (atmosférický tlak, relatívna vlhkosť, teplota okolia) a umožňuje prevádzku s preťažením 10 % počas 1 hodiny každých 12 hodín.

Nadmorská výška: ≤ 1000 m (keď > 1000 XNUMX m, je potrebná korekcia výkonu)

Teplota okolia: 40°C (keď >40°C je potrebná korekcia výkonu)

Relatívna vlhkosť: ≤60%

Ak prevádzkové podmienky dieselagregátu na mieste nespĺňajú vyššie uvedené podmienky, je potrebné opraviť výstupný výkon agregátu a nakoniec opraviť koeficient, obráťte sa na nás.
